Each of our product series are available with multiple configuration options to suit your application. Customization options include mechanical envelope, switch logic, diodes, indicators, and more. Contact us to learn about how we can help make your next project successful.

More information about switch terminology.

Design Connector Type Max Frequency Fail-Safe Latching Pulse Latching Normally Open
Photo	Title	Description	Datasheet	Commercial: Designed for standard operating environments including laboratories and most commercial applications. Ruggedized: Designed for aerospace and defense applications. Suitable for vibration, acceleration, mechanical shock, thermal cycling, humidity, and other harsh environmental conditions.Product Line	SPDT: Single Pole Double Throw. One input is directed to either of two outputs or conversely, either of two inputs is directed to a single output. SPXT: Multi-Position. Switches with 3 or more throws or positions. Transfer: A four port device with two inputs toggled between two outputs. This configuration is normally used when you want to toggle two sources and two loads. Design	Connector	Reflective: Directs all unselected inputs to an open circuit load.The only source that sees a 50 ohm load is the one associated with the selected position. It is less complicated and less expensive than a terminated switch. If the sources can tolerate an open circuit load, this is the configuration to use. Terminated: Directs all unselected inputs to a 50 ohm load located within the switch body.This is used in systems where the RF sources cannot tolerate an open circuit load condition. When a position is selected the internal 50 ohm load is disconnected from the source and the load becomes the 50 ohm load associated with the instrument connected to the switch Common port. In this type of switch a 50 ohm load is always seen by the RF sources. Type	Maximum rated operating frequency. Functional performance is tested from DC to this maximum frequency. Max Frequency	This is a Normally Closed contact that does not require actuator power to remain closed. It is only closed when no other switch position is selected. When an alternate position is selected by applying current to the appropriate actuator, the Failsafe contact opens and does not close again until current is removed from the selected position. This feature directs signals to a specified path should a failure occur and the system loses power. Another application is one where the user wants one position selected most frequently than other positions. In this scenario the Failsafe position would be assigned to the frequently used position. This is beneficial because the most frequently used state requires no actuator power. Fail-Safe	The switch maintains the selected position magnetically without current draw. Current is required to change positions. Current is required only during the switching phase and an internal current cut-off circuit is used to produce a pulse. The main use of latching switches is in systems that do not have the power available to supply constant actuator current. The magnetic latching feature enables these switches to withstand high shock and vibration environments. Latching switches generate less heat than non-latching switches because of the internal current cut-off design and customer provided cut-off in pulse latching switches. Latching	The switch maintains the selected position magnetically without current draw. A user-supplied DC pulse between 20-50 mSecs is required to actuate a position. The user provides current cut-off. The main use of latching switches is in systems that do not have the power available to supply constant actuator current. The magnetic latching feature enables these switches to withstand high shock and vibration environments. Latching switches generate less heat than non-latching switches because of the internal current cut-off design and customer provided cut-off in pulse latching switches. Pulse Latching	All switch paths are open until a position is selected. Continuous current is required to maintain the selected path. This configuration represents the simplest and most common type of switch. Most users are able to supply the constant current required by these devices and the design is quite rugged and reliable. Normally Open
	2A/2AE Series	The 2A/2AE Series are SPDT 50 Ohm Terminated Switch products with SMA connectors. The 2A Series has a frequency range of DC to 18 GHz, and the 2AE Series supports an extended frequency range of DC to 26.5 GHz.	2a.pdf	Commercial	SPDT	SMA	Terminated	26.5 GHz	Yes	No	No	No
	2C/2CE Series	The 2C/2CE Series are SPDT 50 Ohm Terminated Switch products with SMA connectors. The 2C Series has a frequency range of DC to 18 GHz, and the 2CE Series supports an extended frequency range of DC to 26.5 GHz.	2c.pdf	Commercial	SPDT	SMA	Terminated	26.5 GHz	Yes	Yes	Yes	No
	2N/2NH Series	The 2N/2NH Series are SPDT 50 Ohm Switch products with N connectors. These series have a frequency range of DC to 14 GHz. The 2NH Series features High Power N connectors.	2n.pdf	Commercial	SPDT	N	Reflective	14 GHz	Yes	Yes	Yes	No
	2S/2SE/2SL/2SLE Series	The 2S/2SE/2SL/2SLE Series are SPDT 50 Ohm Switch products with SMA connectors. The 2S/2SL Series have a frequency range of DC to 18 GHz. The 2SE/2SLE Series has an extended frequency range of DC to 26.5 GHz. The 2SL and 2SLE Series have additional mounting holes for more installation options.	2s.pdf	Commercial	SPDT	SMA	Reflective	26.5 GHz	Yes	Yes	Yes	No
	D1 Series	The D1 Series are Ruggedized SPDT 50 Ohm Switch products with SMA connectors and a frequency range of DC to 22 GHz. These Non-Terminated, Reflective switches present an Open Circuit impedance when in the open switch position.	d1.pdf	Ruggedized	SPDT	SMA	Reflective	22 GHz	Yes	Yes	Yes	No
	D2 Series	The D2 Series are Ruggedized SPDT 50 Ohm Switch products featuring N, BNC or TNC connectors and a frequency range of DC to 12.4 GHz.	d2.pdf	Ruggedized	SPDT	N, BNC, TNC	Reflective	12.4 GHz	Yes	Yes	Yes	No

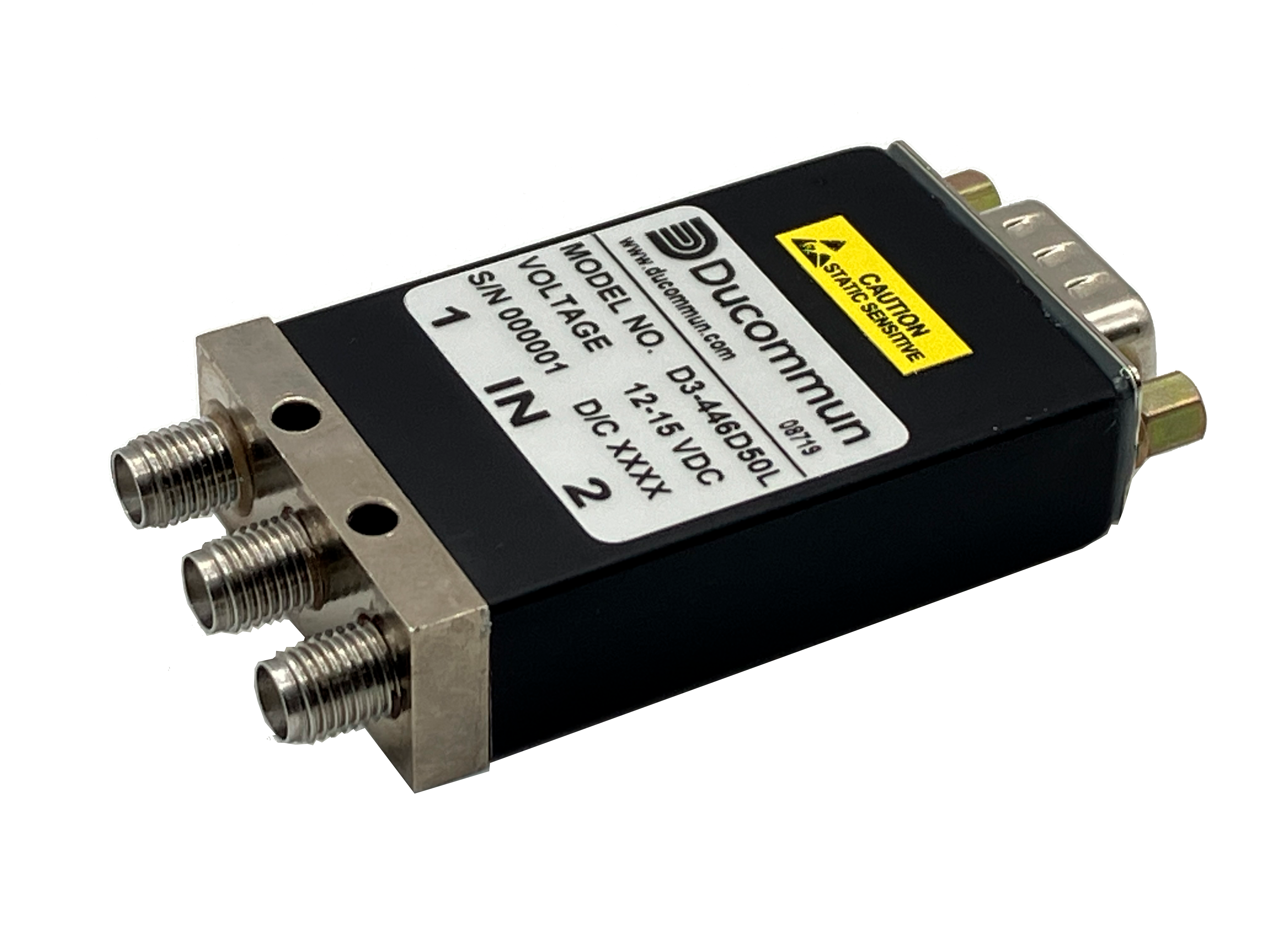

	D3 Series	The D3 Series are Ruggedized SPDT 50 Ohm Switch products featuring SMA connectors and a frequency range of DC to 22 GHz.	d3.pdf	Ruggedized	SPDT	SMA	Reflective	22 GHz	Yes	Yes	Yes	No
	DK1 Series	The DK1 Series are Ruggedized SPDT 50 Ohm Switch products featuring K connectors and a frequency range of DC to 40 GHz.	dk1.pdf	Ruggedized	SPDT	K	Reflective	40 GHz	Yes	Yes	Yes	No
	SN Series	The SN/SNH Series are SP3T to SP6T Multi Position Switch products with N connectors and a frequency range of DC to 10 GHz. The SNH Series features High Power N connectors.	sn.pdf	Commercial	SPXT	N	Reflective	10 GHz	Yes	Custom	Custom	Yes
	SS Series	The SS/SSE Series are SP3T to SP6T Multi Position Switch products with SMA connectors. The SS Series supports a frequency range of DC to 18 GHz, and the SSE Series supports an extended frequency range of DC to 22 GHz.	ss.pdf	Commercial	SPXT	SMA	Reflective	22 GHz	Yes	Custom	Custom	Yes
	L Series	The L Series are SP7T to SP8T Multi Position Ruggedized Switch products with N, BNC or TNC connectors. Frequency range is DC to 9 GHz.	l.pdf	Ruggedized	SPXT	N, BNC, TNC	Reflective	9 GHz	No	Yes	No	Yes
	M Series	The M Series are SP3T to SP6T Multi Position Ruggedized Switch products with SMA connectors and a frequency range of DC to 18 GHz.	m.pdf	Ruggedized	SPXT	SMA	Reflective	18 GHz	No	Yes	No	Yes
	O Series	The O Series are SP3T to SP6T Multi Position Switch products featuring N, BNC or TNC connectors. Frequency range is DC to 12.4 GHz.	o.pdf	Ruggedized	SPXT	N, BNC, TNC	Reflective	12.4 GHz	No	Yes	No	Yes
	Q Series	The Q Series are SP3T to SP6T Multi Position Switch products featuring SMA connectors. Frequency range is DC to 18 GHz.	q.pdf	Ruggedized	SPXT	SMA	Reflective	18 GHz	No	No	No	Yes
	S Series	The S Series are SP3T to SP6T Multi Position Switch products featuring SC connectors. Frequency range is DC to 6.5 GHz. This series is designed for high power applications.	ssp3t.pdf	Ruggedized	SPXT	SC	Reflective	6.5 GHz	No	Yes	No	Yes
	TA/TAE/TD/TDE Series	The TA/TAE/TD/TDE Series are Transfer Switch products with SMA connectors. The TA/TAE Series are available with fail-safe, latching self cut-off, or pulse latching functions. The TD/TDE Series are available with fail-safe function. The TA and TD Series support DC to 18 GHz, while the TAE and TDE Series supported extended frequency coverage of DC to 26.5 GHz.	ta.pdf	Commercial	Transfer	SMA	Reflective	26.5 GHz	Yes	Yes	Yes	Yes
	TN/TNH Series	The TN/TNH Series are Transfer Switch products with N connectors supporting a frequency range of DC to 12.4 GHz. The TNH Series features High Power N connectors.	tn.pdf	Commercial	Transfer	N	Reflective	12.4 GHz	Yes	Yes	Yes	No
	T3 Series	The T3 Series are Ruggedized Transfer Switch products with N, BNC or TNC connectors and a frequency range of DC to 12.4 GHz.	t3.pdf	Ruggedized	Transfer	N, BNC, TNC	Reflective	12.4 GHz	Yes	Yes	Yes	No
	T4 Series	The T4 Series are Ruggedized Transfer Switch products with SMA connectors and a frequency range of DC to 18 GHz.	t4.pdf	Ruggedized	Transfer	SMA	Reflective	18 GHz	Yes	Yes	Yes	No
	TK4 Series	The TK4 Series are Ruggedized Transfer Switch products with K connectors and a frequency range of DC to 40 GHz.	tk4.pdf	Ruggedized	Transfer	K	Reflective	40 GHz	Yes	Yes	Yes	No
